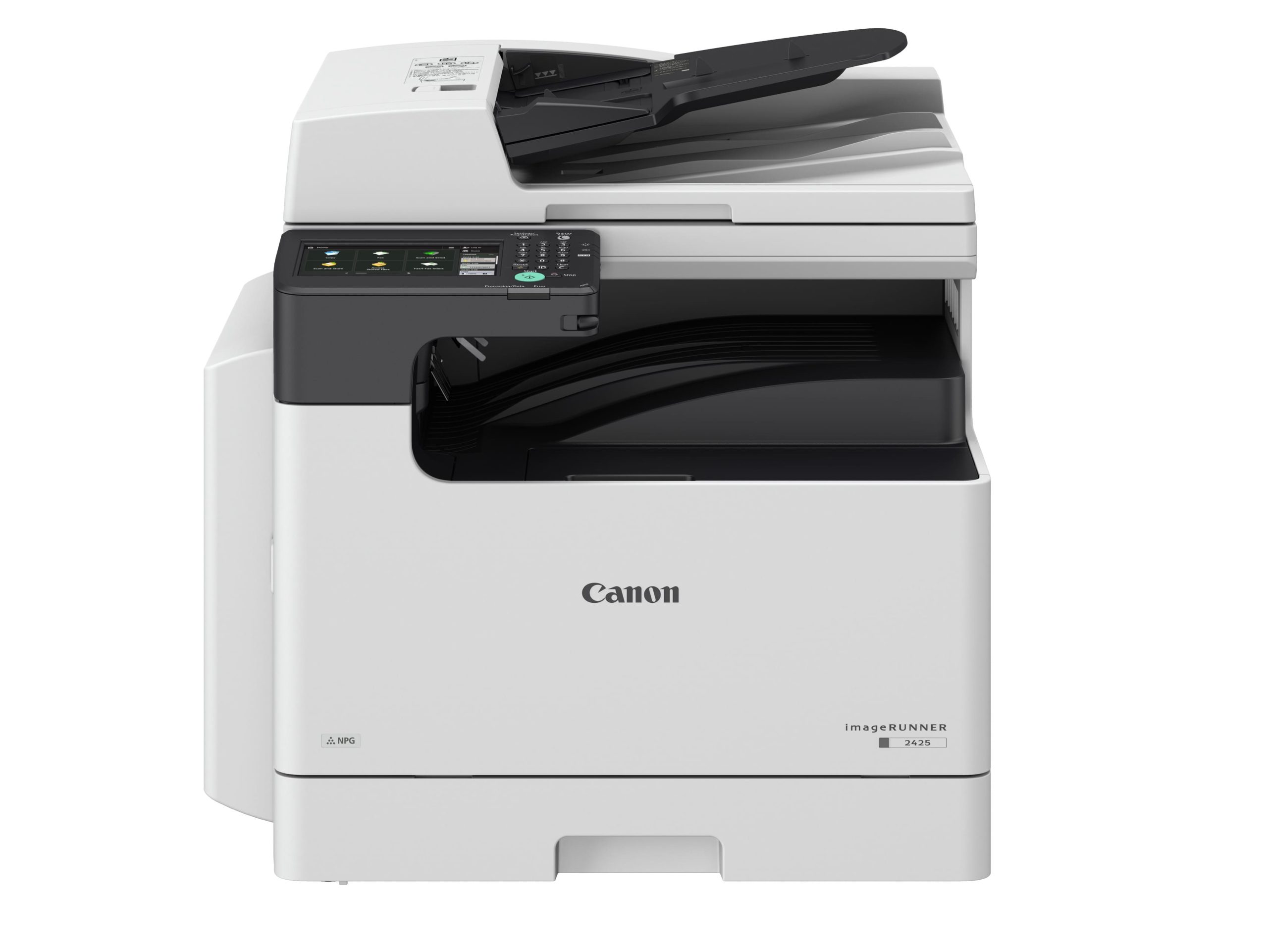

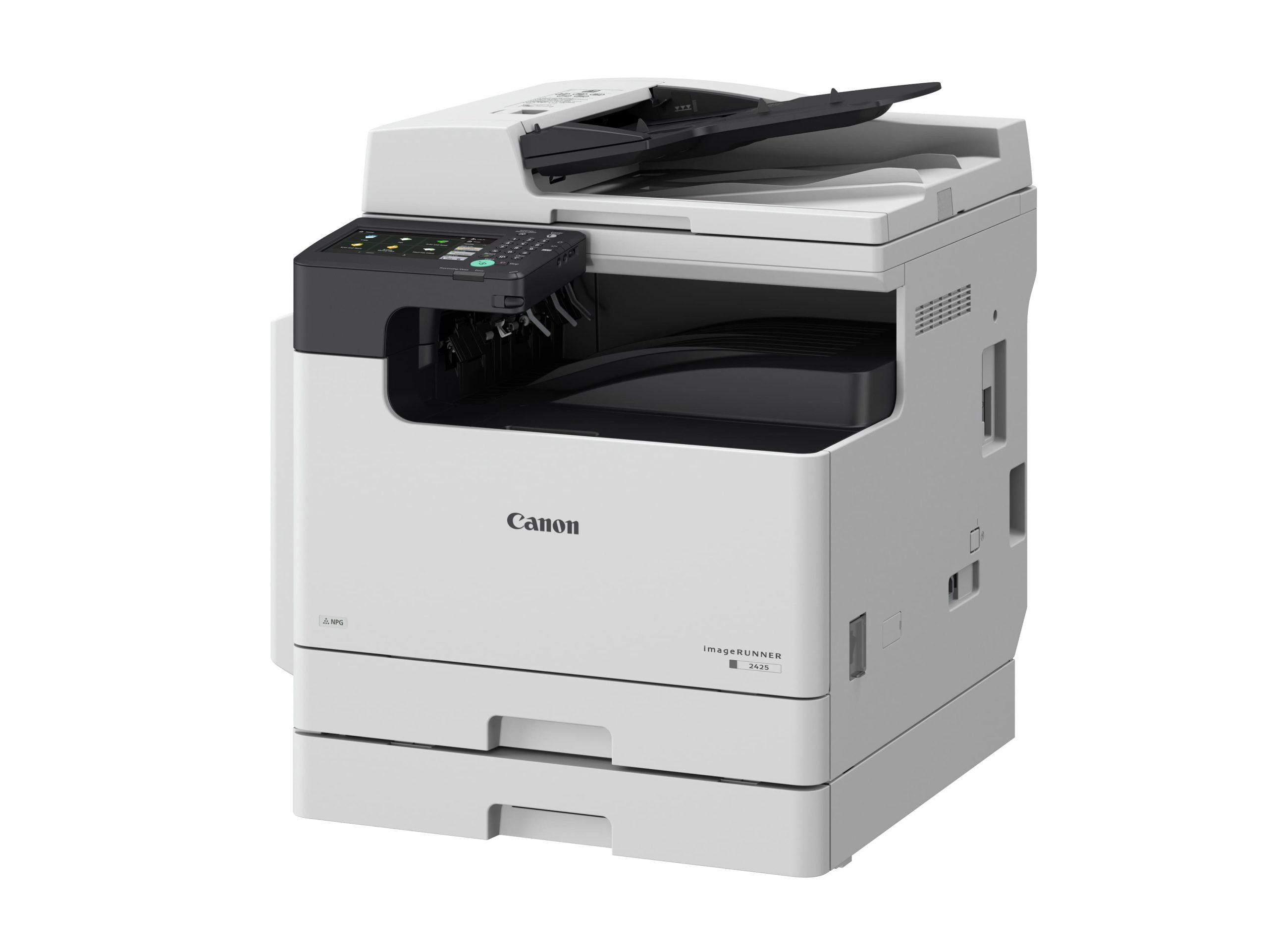

imageRUNNER 2425
The imageRUNNER 2425 facilitates a productive work environment with great usability, security and connectivity. Combining intuitive operation and a range of security features, the imageRUNNER 2425 is the perfect solution for today’s businesses.
- A3 Monochrome.
- Print speed of up to 25 pages per minute
Features
Seamless Connectivity
Wireless connectivity and cloud integration ensure productivity even while on the go. Benefit from a wide range of mobile printing solutions supported, including Canon PRINT Business, Google Cloud Print™, Apple® AirPrint™ and Mopria® Print Service for seamless mobility.
Easy Operation
A large 17.78cm (7in) colour touch panel ensures smooth operation with great visibility and functionality. The intuitive user interface combines an easy to navigate Home Screen and Timeline feature to simplify routine tasks at the touch of a button.
Maximum Security
Verify System at Start-up checks the validity of device firmware and applications to protect against malware and tampering of firmware. uniFLOW Online/Online Express provides enhanced security through authentication functions that prevent unauthorised device access.
Specification
Main Unit
- Machine Type:A3 Colour Laser Multifunctional
- Core Functions : Print, Copy, Scan, Send and optional Fax
- Control Panel :1 17.78cm (7in) TFT LCD WVGA color Touch panel
- Memory : RAM: 2 GB
- Interface Connection NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) x3, USB 2.0 (Device) x1
- Memory Media USB Memory
- Paper Supply Capacity (A4, 80 g/m2 (gsm)) Standard: 330 sheets Maximum: 580 sheets (with Cassette Feeding Module-AK1)
- Paper Output Capacity (A4, 80 g/m2 (gsm)) Standard: 250 sheets Maximum: 250 sheets
- Supported Media Types Multi-purpose Tray: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Label, Pre-punched, Envelope Paper Cassette: Plain, Recycled, Color, Pre-punched
- Print Speed (BW): Up to 25 pages per minute (A4), Up to 12 pages per minute (A3), Up to 11 ppm (A4R)
- Print Resolution (dpi): 600 x 600
- Page Description Languages : Standard: UFRII Optional: PCL6 (Optional), Adobe®PostScript®3™
- Direct Print : Supported file types: RUI: PDF, EPS, TIFF/JPEG, XPS USB Memory: PDF, TIFF/JPEG, XPS Network Place: PDF, TIFF/JPEG, XPS
- Printing From Mobile and Cloud Application :AirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online
- Operating System UFRII: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.10 or later) PCL (Optional): Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 PS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019, MAC OS X (10.10 or later) PPD: Windows® 7 / 8.1 / 10, MAC OS X (10.10 or later)
- Fonts PCL (Optional) fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*3 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*4 PS fonts: 136 Roman
Scan
- Type : Optional: Duplexing Automatic Document Feeder [2-sided to 2-sided] (DADF-AZ2) or Platen Cover (Platen Cover-AA1)
- Document Feeder Paper Capacity (A4, 80 g/m2):DADF-AZ2: 50 Sheets
- Supported Media Sizes: Platen: Max. scanning size: 297.0 x 432.0 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R Custom size: 139.7 x 148.5 mm to 297.0 x 432.0 mm
- Scan Speed (ipm: BW/CL, A4) DADF-AZ2: 1-sided Scanning: 35/25 (300 dpi, send), 25/13 (600 dpi, copy) 2-sided Scanning: 12/8 (300 dpi, send), 8/4 (600 dpi, copy)
- Scan Resolution (dpi): Scan for Copy: up to 600 x 600 Scan for Send: (Push,BW) up to 600 x 600, (Pull,BW) up to 600 x 600 (Push,CL) up to 300 x 300, (Pull,CL) up to 300 x 300 Scan for Fax: up to 600 x 600
- Pull Scan Specifications: Color Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 7/8.1/10 Windows® Server 2008/Server 2008 R2/Server 2012/Server 2012 R2/Server 2016
Copy
- Copy Speed (BW/CL): Up to 25 pages per minute (A4), up to 12 pages per minute (A3), up to 11 pages per minute (A4R)
- First-Copy-Out Time (BW): Approx. 7.4s or less
- Copy Resolution (dpi): 600 x 600
- Copy Density:Automatic or Manual (9 Levels)
- Magnification 25% - 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100%, 115%, 122%, 141%, 200%, 400%
Send
- Destination Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP WebDAV Optional: Super G3 FAX
- Address Book / Speed Dials:LDAP (2,000)/Local (1,600)/Speed dial (200)
- Send Resolution (dpi): Push: 100 x 100, 150 x 150, 200 x 100 (Standard), 200 x 200 (Fine), 200 x 400*5 (SuperFine), 300 x 300, 400 x 400*5 (UltraFine), 600 x 600*5 Pull: 75 x 75, 100 x 100, 150 x 150, 200 x 200, 300 x 300, 400 ｘ 400*5, 600 x 600*5
- Communication Protocol File: FTP (TCP/IP), SMB (TCP/IP), WebDAV Email/iFax: SMTP (send), POP3 (receive)
- File Format Standard: TIFF (MMR), JPEG*6, PDF (Compact, PDF/A-1b, Encrypted), XPS (Compact), PDF/XPS Device Signature Optional: PDF (Trace & Smooth), PDF/XPS (User Signature), PDF/XPS (Searchable), Office Open XML (PowerPoint, Word)
FAX
- Maximum Number of Connection Lines1
- Modem Speed:Super G3: 33.6 kbps G3: 14.4 kbps
- Compression MethodMH, MR, MMR, JBIG
- Resolution (dpi)400 x 400 (Ultrafine), 200 x 400 (Superfine), 200 x 200 (Fine), 200 x 100 (Normal)
- Speed Dials Max. 200
- Group Dials/DestinationsMax. 199 dials
- Sequential Broadcast Max. 256 addresses
- Memory Backup Yes
Environmental
- Operating Environment Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity)
- Power Source : 220-240V 50/60Hz 2.7A
- Power Consumption Maximum: Approx. 1,500 W Standby: Approx. 22.1 W*11 Sleep Mode: Approx. 1 W*12, Approx. 2 W*13
Security
- Document Security: Print Security (Secure Print, Encrypted SecurePrint, Forced Hold Printing, uniFLOW Secure Print*9), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS*10), Send Data Security (Confirming FAX number, Allow/Restrict Fax Driver Transmissions, S/MIME Support)
- Authentication and Access Control : User Authentication (Picture Login, Picture and PIN Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control
- Network Security : TLS, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality(IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception)
- Device Security Standard Storage Initialize, Protecting MFP Software Integrity, Verify System at Startup
Hardware/SoftwareAccessories
- Tracking and Reporting uniFLOW Online Express
- Remote Management Tools iW Management Console eMaintenance Content Delivery System
- Scanning Software ScanGear
- Optimisation ToolsCanon Driver Configuration Tool
- Platform MEAP (Multifunctional Embedded Application Platform)
- Print Accessories PCL (Optional) International Font Set-A1 PS Printer Kit-CM1 PCL (Optional) Printer Kit-CM1
- Barcode Printing Barcode Printing Kit-D1
- Fax Accessories Super G3 FAX Board-BE1 Remote Fax Kit-A1
