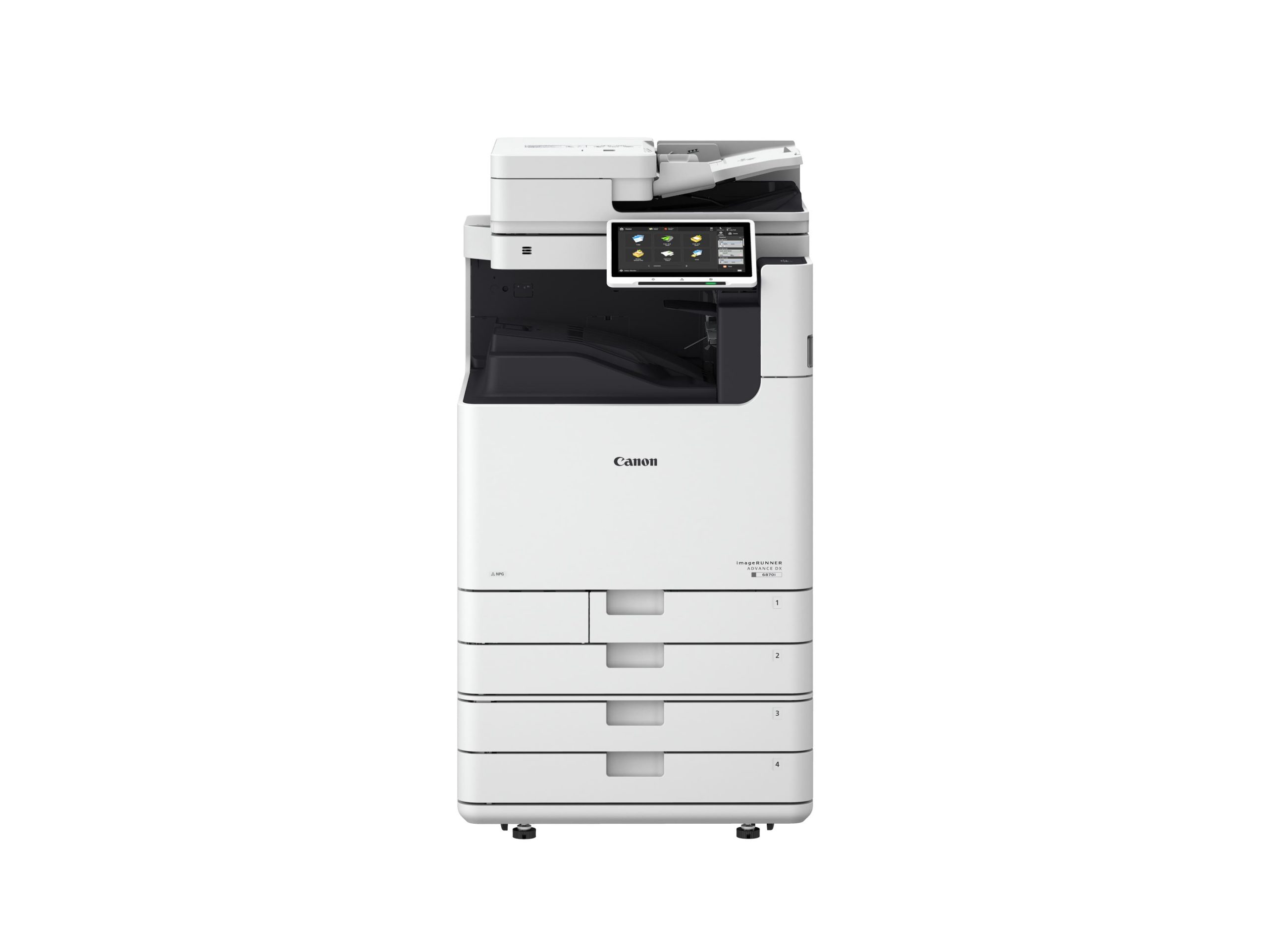

imageRUNNER ADVANCE DX 6855i
The imageRUNNER ADVANCE DX 6855i series delivers productivity while keeping operating noise levels low. With high speed scanning, versatile finishing options and various security features, the series is perfect for any modern office environment.
- A3 Monochrome.
- Print speed of up to 55 pages per minute
Features
Superb Workflow Efficiency
Class leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures. Easily scan and convert documents to Searchable PDF, Microsoft® Word, and Microsoft® PowerPoint files.
Effective Cost Management
Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis. High product quality and reliability, combined with remote diagnostics and assistance help reduce costs by minimising downtime and time spent by IT.
Environmentally Friendly
Fusing technologies and innovative sleep mode features help lower overall energy consumption efficiently. Force Hold Print minimises paper wastage by holding jobs at the device, allowing change of print settings, preview and edit of print jobs at the device to achieve desired results at the first time of printing.
Specification
Main Unit
- Machine Type:A3 Colour Laser Multifunctional
- Core Functions : Print, Copy, Scan, Send and optional Fax
- Control Panel :10.1mm TFT LCD WSVGA Color Touch panel
- Memory : RAM: - Main CPU: 2 GB - Image Processing CPU: 2 GB + 1 GB*1
- Storage :Standard*1: 320Gb (available disk space: 250Gb) Optional: 1TB
- Interface Connection NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: Bluetooth Low Energy OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface
- Memory Media USB Memory
- Paper Supply Capacity (A4, 80 g/m2 (gsm))Standard: 1.200 sheets 1 x 100-sheet multi-purpose tray 2 x 550-sheet cassettes Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1)

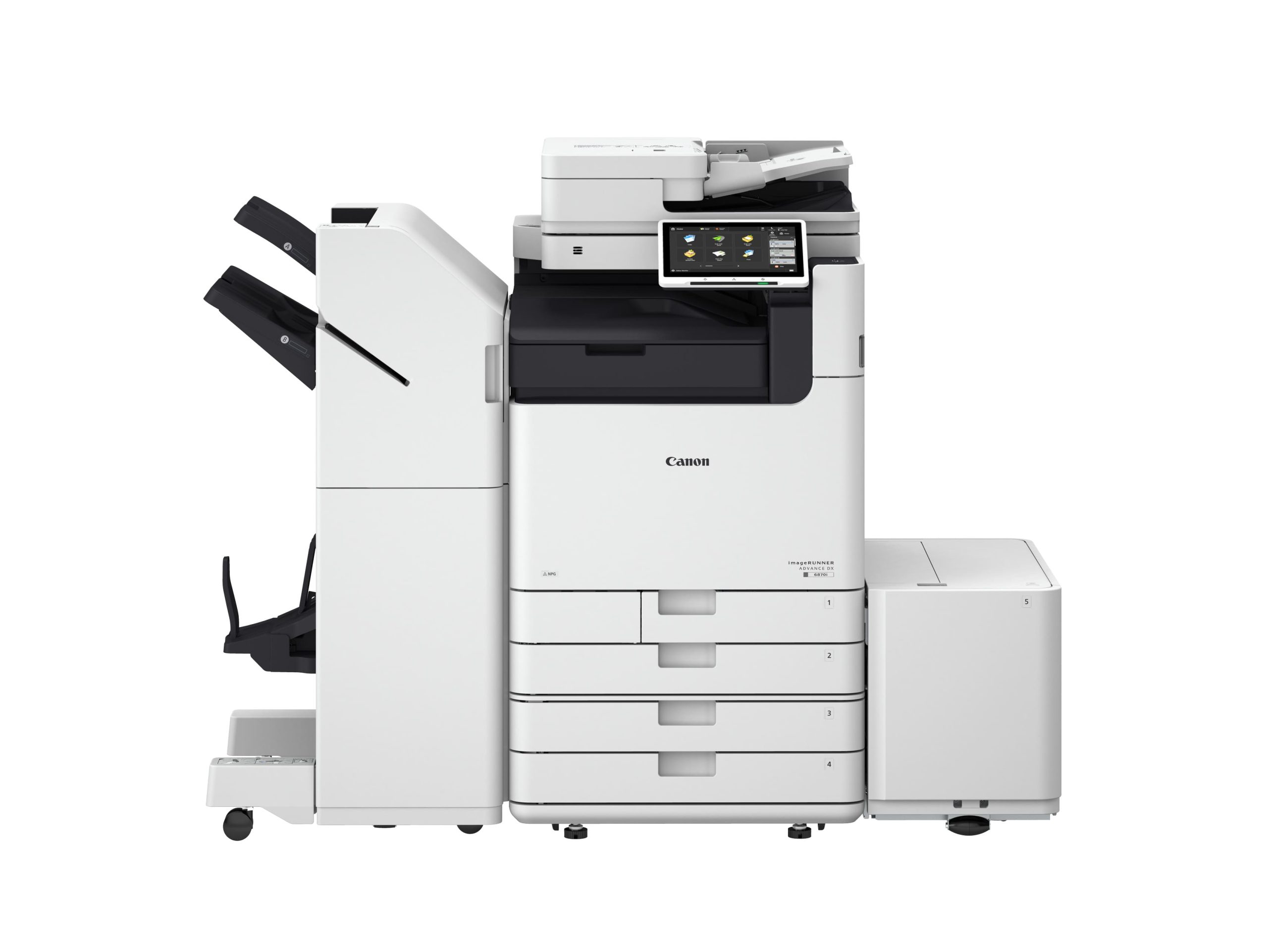

- Paper Output Capacity (A4, 80 g/m2 (gsm)) Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AB2 or Fold & Book Finisher-A1 and 3rd Copy Tray Kit-A1)
- Supported Media Types Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Cassette (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3
- Print Speed (BW): iR-ADV DX 6855i Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R)
- Print Resolution (dpi): 1,200 x 1,200
- Page Description Languages : Standard: UFR II, PCL6 Optional: Adobe®PostScript®3™3™
- Direct Print : Supported file types: PDF, EPS, TIFF/JPEG, and XPS
- Printing From Mobile and Cloud Application :AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print
- Operating System UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later) As of Jan. 2022
- Fonts PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9
Scan
- Type :Single-pass Duplexing Automatic Document Feeder*10 [2-sided to 2-sided (Automatic)]
- Document Feeder Paper Capacity (A4, 80 g/m2): Up to 200 Sheets
- Supported Media Sizes: Platen scanning size: up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm
- Scan Speed (ipm: BW/CL, A4) 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy), 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)
- Scan Resolution (dpi): Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600
- Pull Scan Specifications: Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022
Copy
- Copy Speed (BW/CL): iR-ADV DX 6855i Up to 55 pages/min (A4, A5*7, A5R, A6R*7), up to 29 pages/min (A3), up to 36 pages/min (A4R)
- First-Copy-Out Time (BW): iR-ADV DX 6855i: Approx. 2.9 seconds or less
- Copy Resolution (dpi): 600 x 600
- Copy Density:Automatic or Manual (9 Levels)
- Magnification Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400%
Send
- Destination Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax
- Address Book / Speed Dials:LDAP (2,000) / Local (1,600) / One-touch (200)
- Send Resolution (dpi): Push: Up to 600 x 600 Pull: Up to 600 x 600
- Communication Protocol File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3
- File Format Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Environmental
- Operating Environment Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity)
- Power Source : 220-240V, 50/60Hz, 6A
- Power Consumption Maximum: iR-ADV DX 6855i: Approx. 1,800 W Standby: Approx. 50.7 W*14 Sleep mode: Approx. 0.8 W*15
Security
- Document Security: Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13) Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically) Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration) BOX Security (Mail Box Password Protected, Advanced Box Access Control) Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) Document Tracking (Secure Watermark)

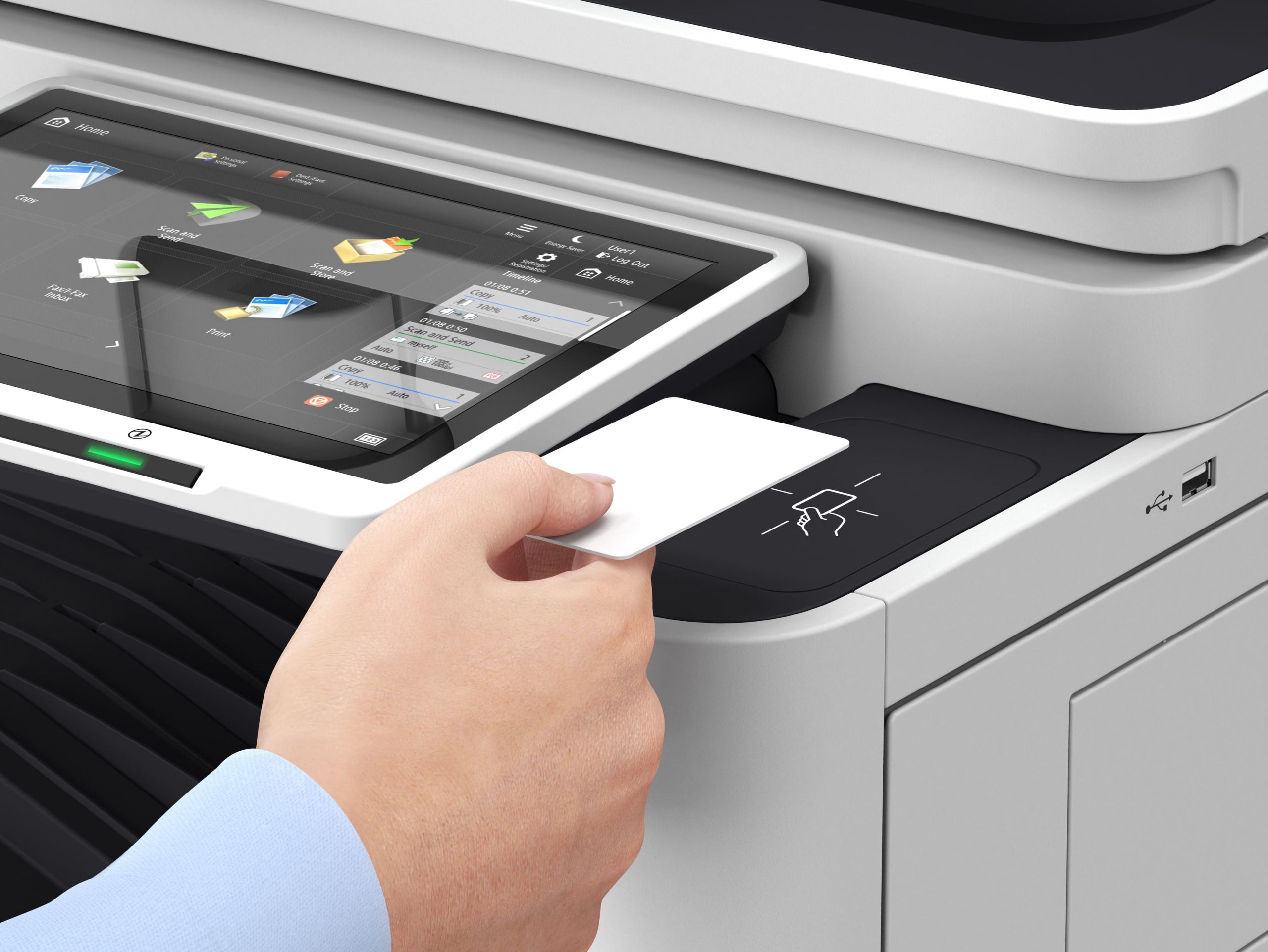

- Authentication and Access Control : User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login) Department ID Authentication (Department ID and PIN Login, Function Level Login) uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login) Access Management System (Access Control)
- Network Security : TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
- Device Security Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule)
Hardware/SoftwareAccessories
- Tracking and Reporting Universal Login Manager (ULM) uniFLOW Online Express
- Remote Management Tools iW Management Console eMaintenance Content Delivery System
- Scanning Software Colour Network ScanGear 2
- Optimisation ToolsCanon Driver Configuration Tool
- Platform MEAP (Multifunctional Embedded Application Platform)
- Print Accessories PCL International Font Set-A1 PCL Asian Font Set-A1 PS Printer Kit-BC1
- Barcode Printing Barcode Printing Kit-D1
- Fax Accessories Super G3 FAX Board-AX1 Super G3 2nd Line Fax Board-AX1 Super G3 3rd/4th Line Fax Board-AX1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1
